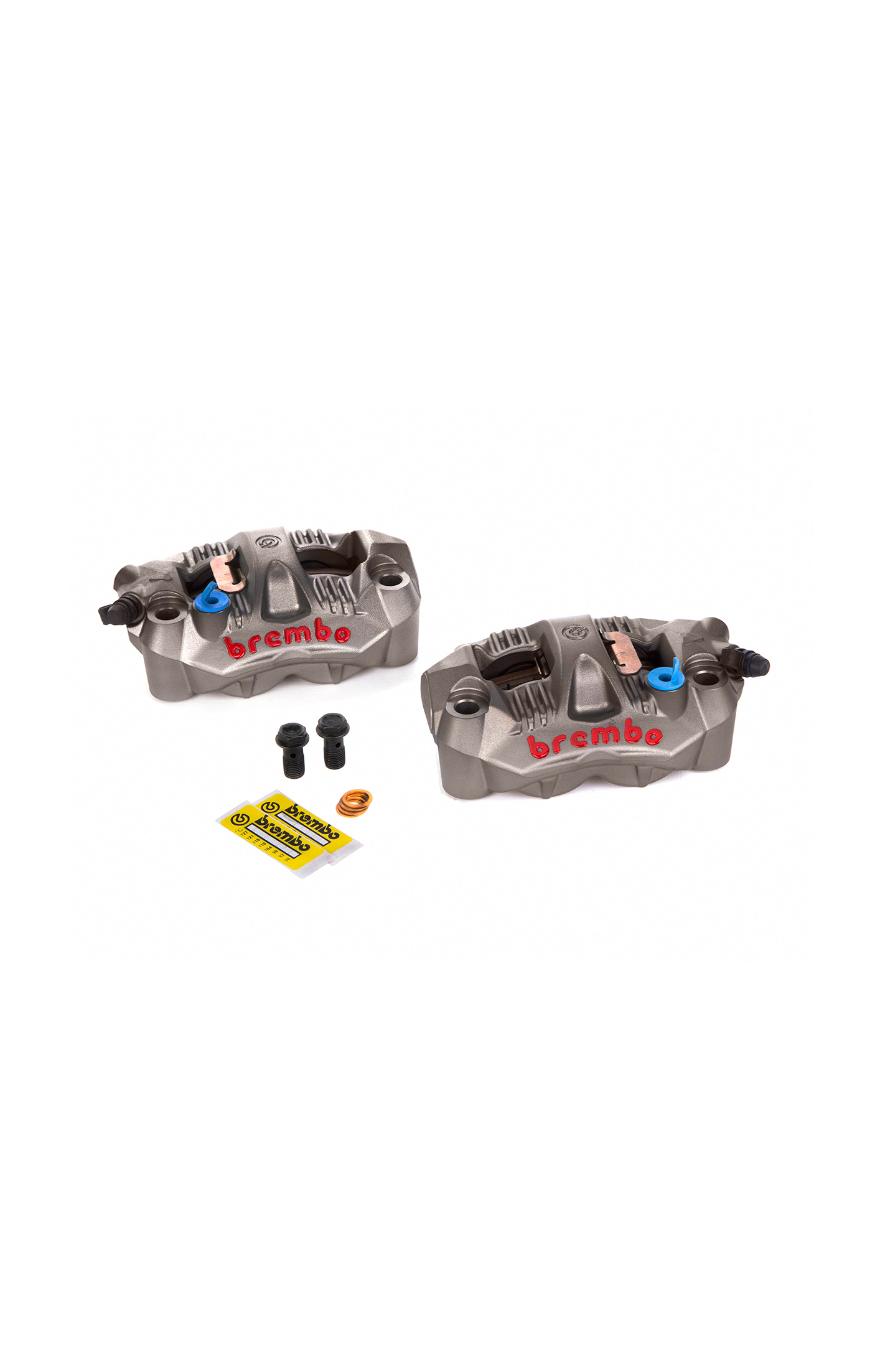

Brembo 108mm Monobloc Cast Calipers - GP4-RS

Brembo 108mm Monobloc Cast Calipers - GP4-RS

SKU: 220C78310

Cast aluminum monobloc (1 piece) calipers 4 x 30mm pistons.

  • Moto GP styled cooling fins
  • Titanium Gray finish
  • 108mm spacing
  • Kit comes with 2 calipers complete with sintered Brembo pads



Position: Front

Bolt-Center: 108mm

Caliper Body: Monoblock

Piston DIA: 30mm

Piston Quantity: 4

Piston Material: Aluminum

Disc Height: 32-34mm

Caliper Material: Cast Aluminum

Finish: Hard Anodized

Weight (w/o pads): 2.06 lb. (935g) - Per Caliper

Brake Pads: Included (HH Rated Sintered)

Offset: 22.5mm

Brake Fluid: DOT 4

Note: 2 Caliper Kit

Brembo P/N: 220.C783.10



Note: If you are not sure what size calipers your bike needs, check out this blog post about measuring them

  • Fitment

    MAKE MODEL YEARS
    HONDA CBR1000RR 2006 - 2019
    HONDA CBR1000RR SP 2014 - 2019
    HONDA CBR600RR 2005 - 2016
    KAWASAKI GTR1400 2008 - 2018
    KAWASAKI H2R 2015 - 2024
    KAWASAKI Z1000 2007 - 2019
    KAWASAKI Z1000SX (NINJA 1000) 2011 - 2013
    KAWASAKI Z750R 2011 - 2014
    KAWASAKI ZX-10R 2004 - 2015
    KAWASAKI ZX-12R 2002 - 2006
    KAWASAKI ZX-14R 2006 - 2015
    KAWASAKI ZX-6R 2007 - 2019
    KAWASAKI ZX-6R 636 2003 - 2006
    KAWASAKI ZX-6RR 2003 - 2019
    SUZUKI GSX-R1000 2003 - 2019
    SUZUKI GSX-R600 2004 - 2019
    SUZUKI GSX-R750 2004 - 2019
    SUZUKI GSX-S1000 2016 - 2024
    SUZUKI GSX-S1000GT 2022 - 2024
    YAMAHA FZ-09 / MT-09 2014 - 2019
    YAMAHA FZ-10 / MT-10 2016 - 2019
    YAMAHA FZ1 / MT-01 2007 - 2009
    YAMAHA V-MAX 2009 - 2016
    YAMAHA XSR900 2016 - 2019
    YAMAHA YZF-R1 2004 - 2019
    YAMAHA YZF-R1M 2016 - 2019
    YAMAHA YZF-R6 2005 - 2019
  • Included

    • Sold

       Per Pair
$799.95Price
